INDOOR CABLE
OVERVIEW
Fiber Optic indoor cables are used exclusively within buildings and must have a flame-retardant jacket to fit this purpose. They may be deployed in duct (conduit) or cable tray. When routing a cable within a building, you will also need to factor in fire prevention requirements. These requirements differ per country and region of the world.
APPLICATION
Used in the manufacture of patch cords
Designed for short-run indoor patching or where frequent handling is likely
Color-coded for ease of identification during and post installation
Comes in both single fiber (SFC) and duplex fiber (ZIP) constructions
Ideal for LAN backbones, telecom access line, campus networks, and FTTx drops
OUTDOOR CABLE
OVERVIEW
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
APPLICATION
Long-distance communication,LAN
Moisture-proof and rodent-proof
Duct, Aerial
FTTA CABLE
APPLICATION
Remote base station communication such as RRU or BBU.
Smart substation and CATV Outdoor application.
Emergency access to optical fiber communication.
Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.
FEATURES
Good mechanical and temperature characteristics.
Good lateral compression and flexibility.
Small diameter, light weight, easy to connect, and support large capacity data transmission.
Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.
Outer jacket material has the advantages of water proof, flame retardant, environmental protection.
FTTH DROP CABLE
OVERVIEW
Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types.
Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.
Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.
Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.
FEATURES
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevant standards;
The mechanical characteristics meets the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

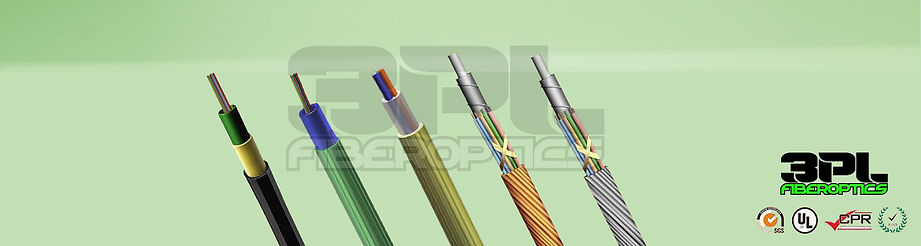

AIR BLOWN CABLE
APPLICATION
Used for air-blown laying in micro-tube
CABLE CHARACTERISTIC
Small size, light weight, low friction coefficient
Plasticity shrink back small, can operating in low temperature and temperature difference environment
Rigidity high, can blow farther in conduit track comparatively straight
CABLE SHEATH MARKING
White color printing at each meter distance of cable sheath
The standard printing contents are as below, alternative contents available on request
1.Meter mark
2.Cable model
3.Fiber count
4.Company/Brand name
5.Manufacture month and year
PATCH CORD & PIGTAIL
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
OVERVIEW
Fiber optic patch cord is available in both singlemode and multimode versions.
Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
APPLICATION
FEATURES
1.Low insertion loss and back reflection loss 2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
PRE-TERMINATED CABLE
OVERVIEW
3PL has been providing high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout number ranging from 12 to 144. Available connector types include MPO, SC, LC, FC, LSH, and MU, available fanout kits include steel-tube type, round type, box type, barrel type, etc., and available fanout types include bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc. The fanout length can be up to 10 meters, and the fanout tolerance can be as small as 0.5cm.
Our indoor/outdoor non-armored Pre-Terminated Fiber Optic Cable Assemblies are great choices for multiple applications inside or outside. For those jobs outside, consider our outdoor non-armored Pre-Terminated Fiber Optic Cable Assemblies for aerial or burial in duct applications. If you’re facing the most extreme conditions, check out our outdoor armored direct burial/aerial and ADSS self-supporting aerial Pre-Terminated Fiber Optic Cable Assemblies. They will provide outstanding service and durability in all kinds of conditions.
All of our pre-terminated cable products are tailor-made to customers’ specific requirements. We can fulfill any kinds of customers’ demands on products’ specs including connector type, fanout type, fanout length/tolerance, cable structure, etc., for a wide range of applications including FTTC, FTTB, FTTH, FTTA, data center, industrial, robotic, health-care fields, etc.
APPLICATION
Connected with trunk cables on one end, equipment port on the other end.
Connected with transfer modules on one end, equipment port on the other end.
FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
FIBER OPTIC CONNECTOR
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
OVERVIEW
Fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assem bly plus a crimp-over sleeve and rubber boot.
Fiber optic connector, or optical fiber connector, is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fiber optic connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
APPLICATION
These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.
FEATURES
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
FIBER OPTIC ADAPTER
OVERVIEW
3PL FIBER OPTIC produce diversfied types of adapters including FC,SC,ST,LC,MU,MTRJ,E2000,DIN,D4,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.Integrative construction of connector,good and low insertion loss and high return loss can satify the requirements of fast,exact,lastingand stable connection in different environments.
Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber).
APPLICATION
Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.
FEATURES
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
FIBER OPTIC ATTENUATOR
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
OVERVIEW
Fiber optic attenuators are devices which reduce (attenuate) the strength of a fiber optic signal within a fiber optic network. Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements. This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.
Our attenuators are a very high quality design using doped fiber to attenuate the signal. Our singlemode attenuators offer a operating wavelength range of 1250nm to 1600nm, covering both the common 1310nm and 1550nm operating wavelengths.
Maximum transmission power is typically one watt. We stock attenuators for the following fiber optic connector types: ST, SC, SC/APC, FC, FC/APC, LC, LC/APC, MU. Other connector type attenuators are available upon special order. We stock most values between 1dB and 25dB for each of these attenuator types.
Although fiber optic attenuators are normally used in singlemode circuits, because this is where the stronger lasers are used for distance transmission, we also have multimode attenuators available (upon special order) in 50/125 and 62.5/125 fiber sizes. Since these will be custom made, minimum order quantity (50+) and extended lead time (2-4 weeks) may be required.
APPLICATION
1.Testing equipment
2.Fiber optical CATV
3.Fiber optical sensor
4.Fiber optical telecommunication system
FEATURES
1.Fixed Attenuator(Fixed Type FC, SC, ST, LC)
2.Female to male type ( FC, SC, ST, LC)
3.In-Line Attenuator(Fused and Fiber Jumpers Type)
4.High Return Loss(In-Line and High RL Type)
5.Exact and Stable Attenuation(Variable Type)
LC UNIBOOT
APPLICATION
Data Centers
Local Area Networks
High-Density Applications
Interconnects
Cross-connects
FEATURES
Uniboot with a Single Housing
Unique Push-Pull Design and Function
Easy to Assemble and Use
Low Insertion Loss and Back Reflection
High Repeatability and Reliability
Telcordia GR-326 Qualified
FIBER OPTIC MEDIA CONVERTER
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
OVERVIEW
3PL has over 100 models of Managed and Unmanaged Media Converters to extend copper to fiber, multimode to multimode and multimode to single mode fiber. To choose the best Media Converter for your project, please choose whether you require a Copper to Fiber Converter or a Fiber to Fiber Converter.
APPLICATION
A fiber media converter is a simple networking device that makes it possible to connect two dissimilar media types such as twisted pair with fiber optic cabling.
Used in interconnecting fiber optic cabling-based systems with existing copper-based, structured cabling systems.
Used in metropolitan area network (MAN) access and data transport services to enterprise customers.
FEATURES
Extend network distances up to 160km
onduct 10/100/1000/2500/10000 Ethernet Rate Conversion
SC, LC and ST fiber connector options
SX, FX, LX, EX, ZX, BX fiber support
Multimode and single mode fiber
10BaseT, Fast Ethernet Gigabit and 10G to fiber
Advanced Features : Link Pass-Through, Far-End Fault, Auto-MDIX, Fiber Fault Alert, Loopback
Manage via SNMP, CLI- Telnet/SSH, Internet Browser
PoE Media Converters provide PoE PSE power injection over UTP Ethernet
SFP Media Converters with pluggable fiber optic ports for use with MSA compliant SFPs.
Managed Media Converters with extensive security and network integration features
Industrial Temperature Media Converters for equipment in -40C to +75C operating temperatures
